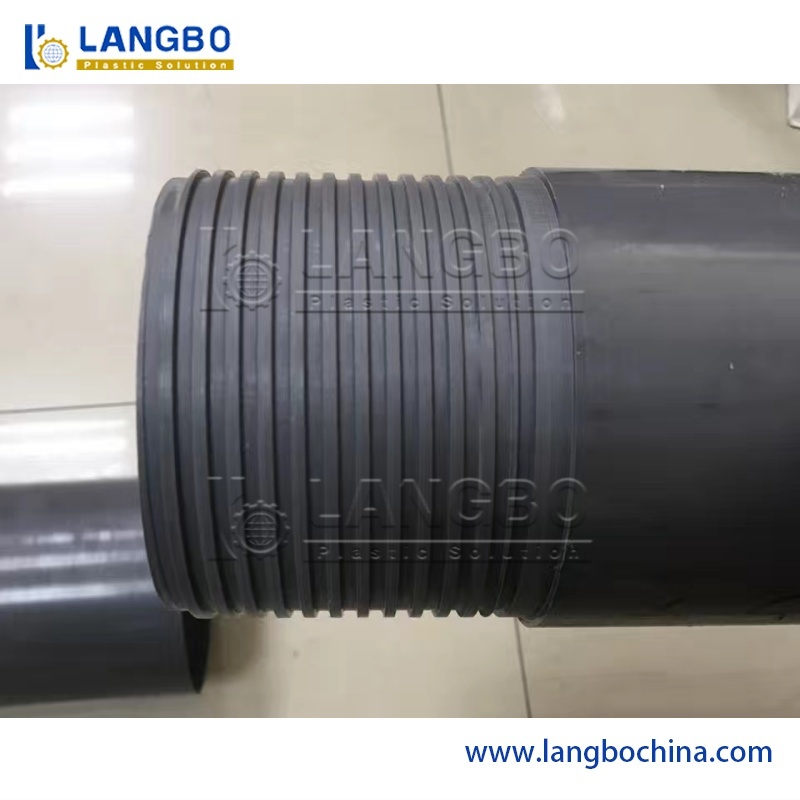

This machine is specialized equipment designed for cutting external threads on pre-extruded PVC, PE, or PP pipes. It is typically used after the extrusion process, providing precise and clean thread profiles for pipe connections, couplings, and fittings.
With an automatic CNC/PLC control system, this machine ensures accurate pitch control, smooth surface finish, and high processing efficiency, making it ideal for large-scale plastic pipe production lines.
| Parameter | Specification |
|---|---|
| Pipe Diameter Range | 16-160 mm (customizable) |
| Applicable Materials | PVC, PE, PP |
| Thread Type | Metric, BSP, NPT, Custom |
| Max. Thread Length | 20-100 mm |
| Spindle Speed | 200-1200 rpm (adjustable) |
| Clamping System | Pneumatic / Mechanical adjustable chuck |
| Feeding System | Servo motor controlled feed |

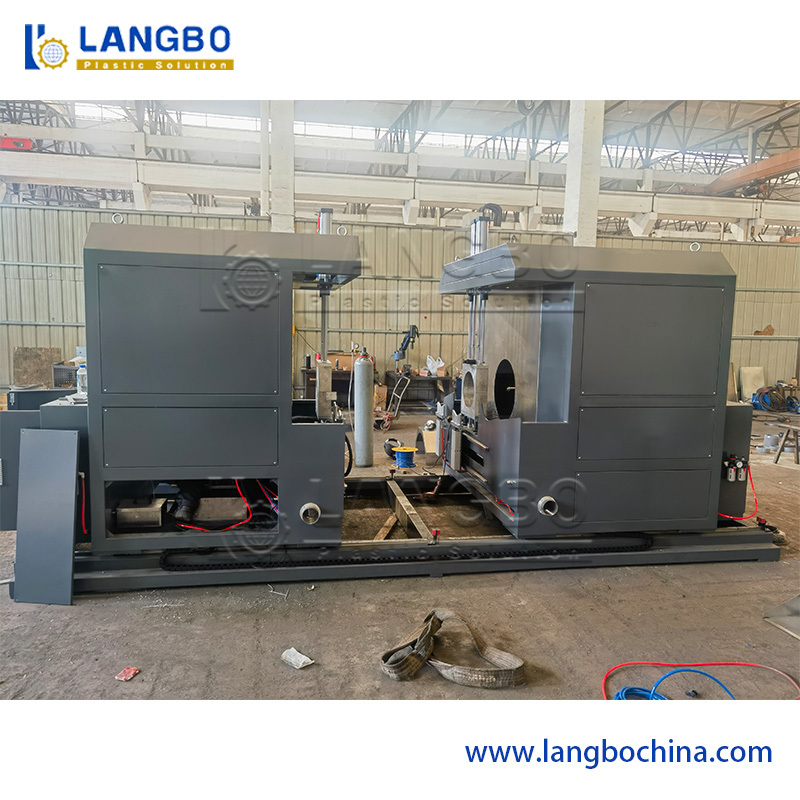

Main Machine Base: Rigid welded structure for stable operation
Pipe Clamping Device: Automatically centers and holds pipes securely
CNC Thread Cutting Head: Precisely cuts external threads according to set pitch and depth
Servo Feeding Unit: Controls the linear feed of the cutting tool
Cooling / Lubrication System: Extends tool life and ensures smooth cutting
Control Panel: Touch screen or CNC system for full parameter adjustment
