APPLICATION:
The HDPE pipes with large diameter are usually applied for fuel gas and water supply. This kind of pipe has plenty of excellent features such as heating resistant, aging resistant, high mechanical strength, environmental stress cracks resistant, good creep resistant, etc. It is a preferred gas conduit for ductwork systems and water supply between city and suburb.
PE PIPE PRODUCTION SPECIFICATIONS:
| Model | Pipe diameter | Extruder | Extruder power | Capacity |
| LB-63 | 20-63 | SJ65/33 | 55AC | 150 |
| LB-110 | 20-110 | SJ65/33 | 55AC | 150 |
| LB-160 | 75-160 | SJ75/33 | 90AC | 280 |
| LB-250 | 90-250 | SJ75/33 | 110DC | 350 |
| LB-315 | 110-315 | SJ90/33 | 160DC | 450 |
| LB-450 | 160-450 | SJ90/33 | 160DC | 450 |
| LB-630 | 315-630 | SJ120/33 | 280DC | 850 |
| LB-800 | 500-800 | SJ150/33 | 315DC | 1100 |
| LB-1200 | 710-1200 | SJ150/34 | 400DC | 1350 |
WHAT’S INCLUDED IN A PE PIPE PRODUCTION LINE?
Every DRTS turnkey PE pipe production line comes with all the necessary machinery you need to start manufacturing high quality PE pipe. From the single screw extruders comprised of quality components to a high speed servo powered puller machines we offer you everything you need to become a successful pipe manufacturer.

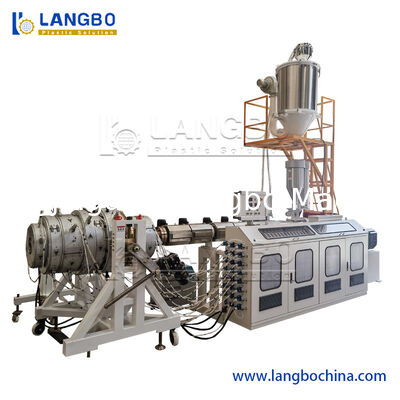

Single Screw Extruder Machine
The pipe extruder machine, the most important part of any production line; it heats, mixes, and extrudes fesh pipe.
Vacuum & Cooling Tank
The vacuum and cooling tank cool and dry extruded pipe to help maintain ovality and pipe uniformity.
Haul Off (Puller) Machine
A pipe haul off machine pulls fresh pipe from the extruder through the vacuum and cooling tank.
Cutter Machine
The pipe cutter machine cuts PE pipe to the desired length programed into the HMI.
Accumulator Machine
An pipe accumulator machine serves the purpose of maintaining a buffer between the change over of coils.
Coiler Machine
The pipe coiler machine allows you to coil pipe for sale and distribution (See also automatic coiler machine).
Optional

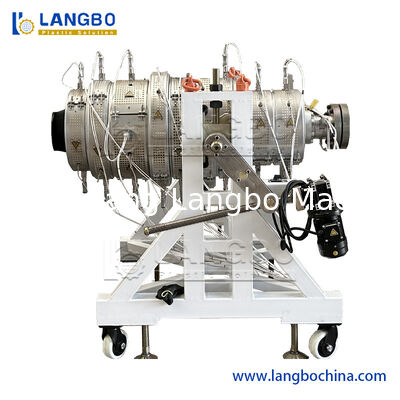

Extrusion Die Heads
An extrusion die head can be added to your existing extruder machine to produce 3 layer pipe with a recycled core, allowing you to save money on raw materials. DRTS always keeps at the forefront of pipe production introducing new technologies that are geared towards our customers benefit. Our technology for the production of 3 layer PE pipe has been a great success among our clients. All DRTS machinery can be also supplied and purchased as a standalone unit providing you with the ability to upgrade machines in your existing production lines.
PRE- AND AFTER-SALE SERVICES
• A great wealth of experience,
• A consistent focus on the highest quality
• A complete twin pipe vacuum sizing system;
• Controlled independently unitary structure twin pipe hauling mechanism and synchronous cutting device;
• Optional length set and accurate adaption stacker.
• A highly motivated team
• Sophisticated process technology
• Customized solutions
